SGMSV-30D3A6F YASKAWA Servo Motor

YASKAWA SGMSV-30D3A6F Servo Motor:

The SGMSV-30D3A6F is a high-performance brushless servo motor from Yaskawa's Sigma series, designed for medium-capacity applications requiring precision, speed, and dynamic response. Although discontinued by the manufacturer, it remains a reliable choice for systems demanding robust motion control.

Technical Specifications:

Type: Brushless AC Servo Motor (Sigma Series)

Rated Power: 3 kW (1-7 kW range)

Voltage: 400 V (industrial standard)

Rated Speed: 3000 RPM (base speed)

Maximum Speed: 5000 RPM (for high-speed applications)

Encoder: 20-bit serial encoder (high-resolution feedback for precise control)

Torque Characteristics:

Rated torque: 9.8 Nm

Instantaneous peak torque: 29.4 Nm (for short-duration overloads)

Current Ratings:

Rated current: 8.9 A (rms)

Instantaneous max. current: 28 A (rms)

Inertia: Low rotor moment of inertia (JM = 1.57 kg·m² × 10⁻⁴ without brake), enabling rapid acceleration/deceleration.

Design: Compact, low-inertia construction suitable for high-dynamic applications.

Options: Available with holding brakes and shaft seals for enhanced safety and environmental resistance.

Applications

CNC Machining: High-speed milling, lathes, and robotic arms.

Packaging/Material Handling: Pick-and-place systems, conveyor controls.

Textile/Printing Machinery: Precision winding, web tension control.

Robotics: Automated assembly lines, collaborative robots.

General Automation: Any system requiring high torque, speed, and accuracy.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

More Products In Stock:

YASKAWA servo motor SGMSV-30D3A6F

YASKAWA industrial servo motor

SGMSV-30D3A6F motor with warranty

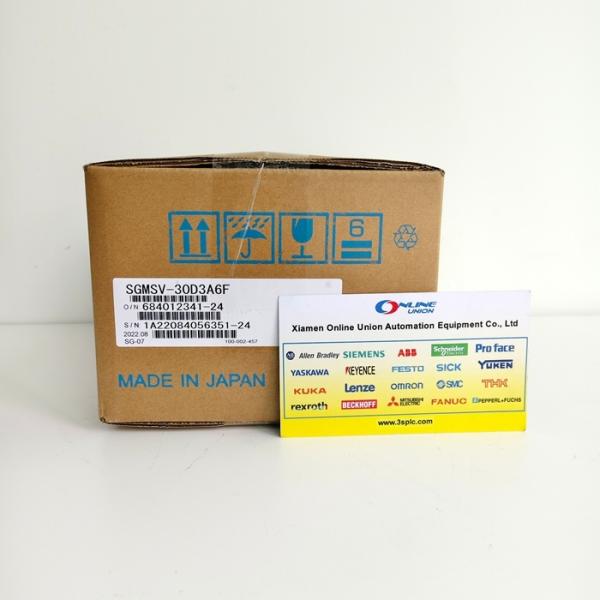

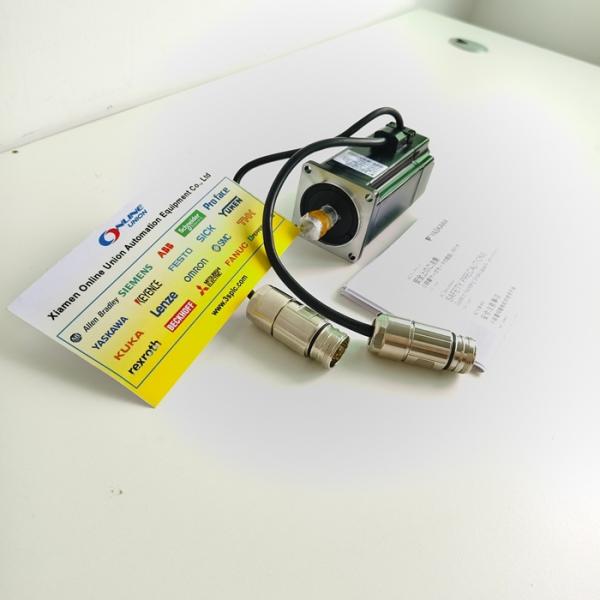

SGMSV-30D3A6F YASKAWA Servo Motor Images
