BCH2MM2023CA6C Schneider Servo Motor BCH

Schneider  BCH2MM2023CA6C Servo Motor BCH:

servo motor BCH; Lexium 28; 130mm; 2000W; 13.5kg.cm²; with oil seal; with key; straight connection

Technical Specifications:

1. Power and Torque
   • Rated Power: 2000W (2kW), suitable for medium-load applications.
   • Rated Torque: 9.55 N·m (under continuous operation), with a peak torque of up to 28.65 N·m, meeting short-term high-load demands.
   • Rated Speed: 2000 rpm, with a maximum mechanical speed of 3000 rpm, ideal for high-speed motion scenarios.
2. Electrical Characteristics
   • Rated Voltage: 220V three-phase AC, compatible with standard industrial power supplies.
   • Rated Current: 11.25A (continuous operation), with a maximum current of 32.85A (for short-term overload).
   • Rotor Inertia: 13.5 kg·cm², featuring a low-inertia design for enhanced dynamic response.
3. Mechanical Structure
   • Shaft Diameter: 22mm, with an 8mm keyway, supporting direct drive to reduce mechanical losses.
   • Flange Size: 130mm, adopting an Asian standard flange for easy installation.
   • Protection Level: IP50 (standard) or IP65 (optional), with dustproof and waterproof designs suitable for harsh environments.
   • Cooling Method: Natural ventilation, eliminating the need for additional cooling devices and reducing system complexity.
4. Encoder and Feedback
   • Encoder Type: 20-bit single-turn absolute encoder, providing high resolution for precise positioning.
   • Feedback Precision: Supports accurate position and speed feedback, meeting closed-loop control requirements.

Packing & Delivery:

1,100% brand New and Original Factory Seal!

2,Warranty:1 year

3,Package: Original packing with cartons.

4,Delivery time: Shipped in 3-7 days after payment

5,All the goods will be tested before shipment

9.55 N*m torque Schneider servo motor

2000 rpm BCH servo motor

220V three-phase AC Lexium 28 servo motor

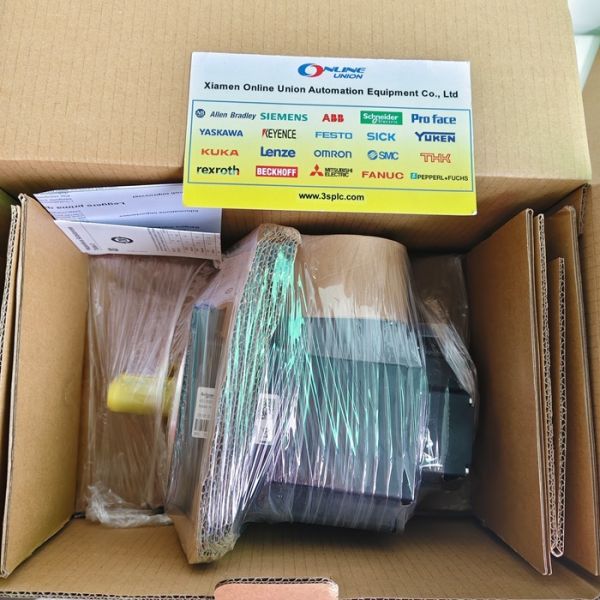

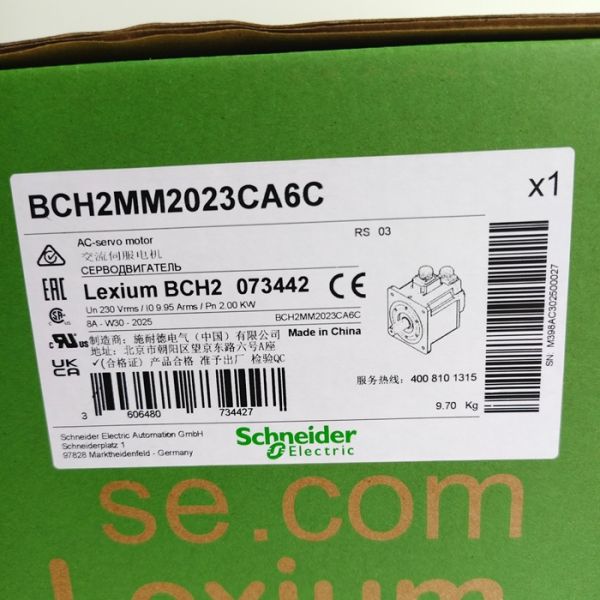

BCH2MM2023CA6C Schneider Servo Motor BCH Images
